Description

The 80A 9600W Intelligent MPPT Solar Charge Controller is a high-capacity solar power management device designed for off-grid and hybrid solar systems. It uses advanced Maximum Power Point Tracking (MPPT) technology to optimize solar energy harvesting, making it suitable for residential, industrial, and remote power applications.

Performance & Efficiency

At the core of this controller is MPPT technology, which continuously tracks the optimal voltage and current from solar panels to maximize energy output. Compared to traditional PWM controllers, it can increase energy harvesting efficiency by up to 30%, with a claimed conversion efficiency of over 99% under ideal conditions.

It supports up to 80A charging current and a maximum system capacity of 9600W (at 96V systems), making it suitable for medium to large solar installations.

Battery Compatibility & Charging Control

The controller supports a wide range of battery types, including:

• Sealed lead-acid
• Gel batteries
• Flooded batteries
• Lithium-ion and LiFePO4

It features multi-stage smart charging (bulk, absorption, float, and equalization), which helps extend battery lifespan and improve charging stability. Voltage systems from 12V up to 96V are supported, with automatic or manual configuration depending on the setup.

Solar Input & Flexibility

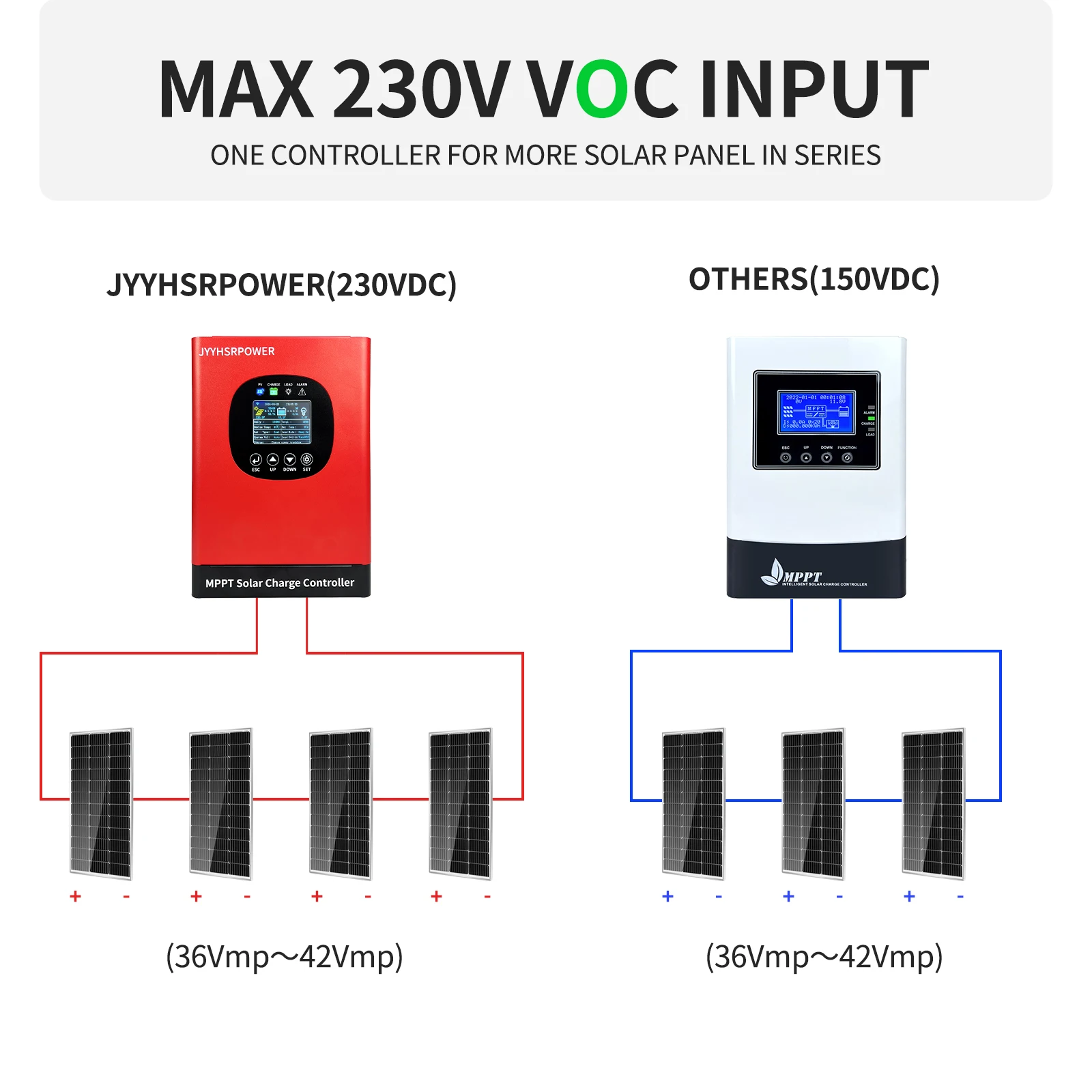

With a maximum PV input voltage of 230V (open-circuit), the controller allows flexible solar panel configurations, reducing wiring complexity and installation costs. This makes it suitable for both small and large solar arrays.

Smart Monitoring & Control

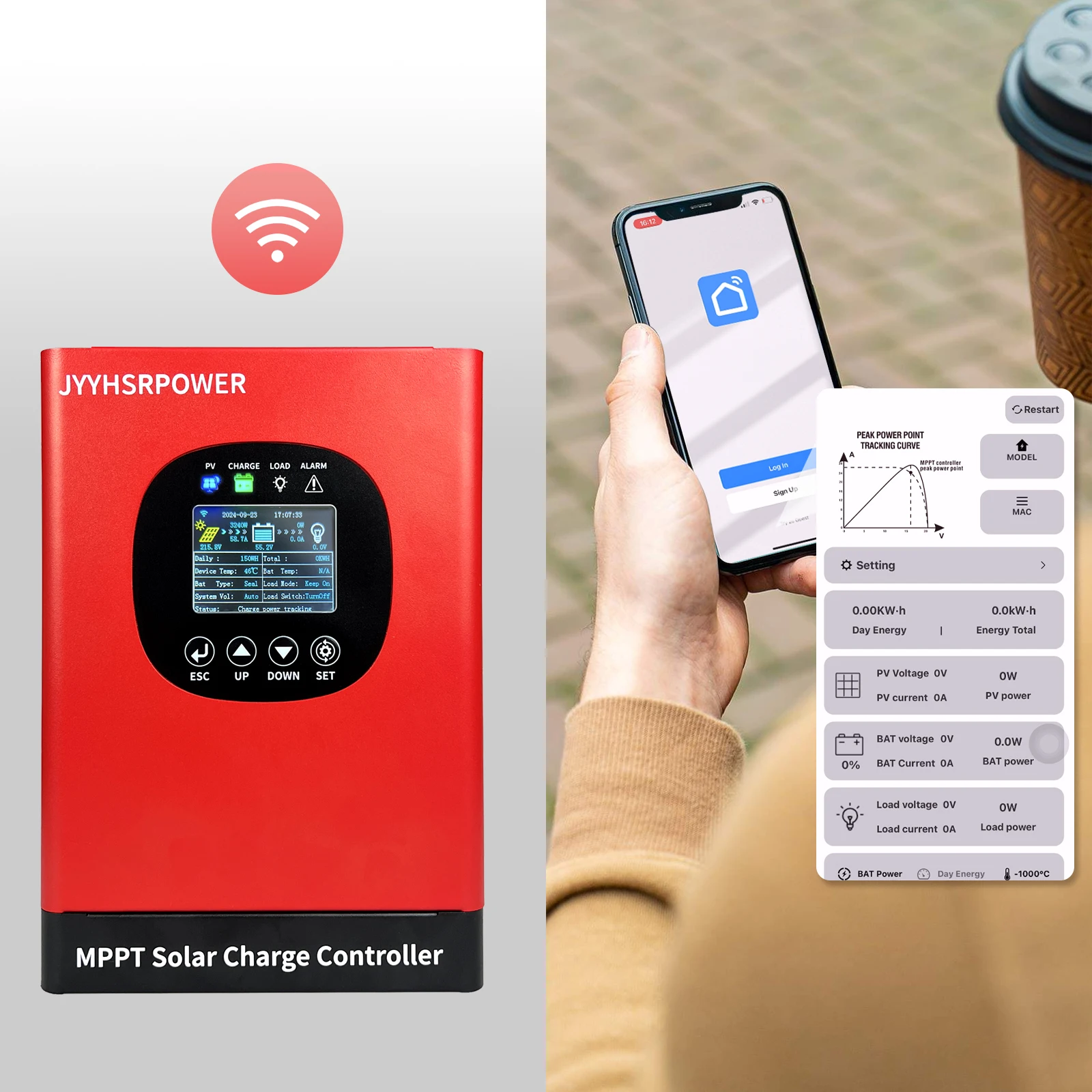

Select versions include built-in WiFi connectivity, allowing users to monitor and control the system through the SmartLife app on Android and iOS. Real-time data such as voltage, current, energy generation, and system status can be viewed remotely.

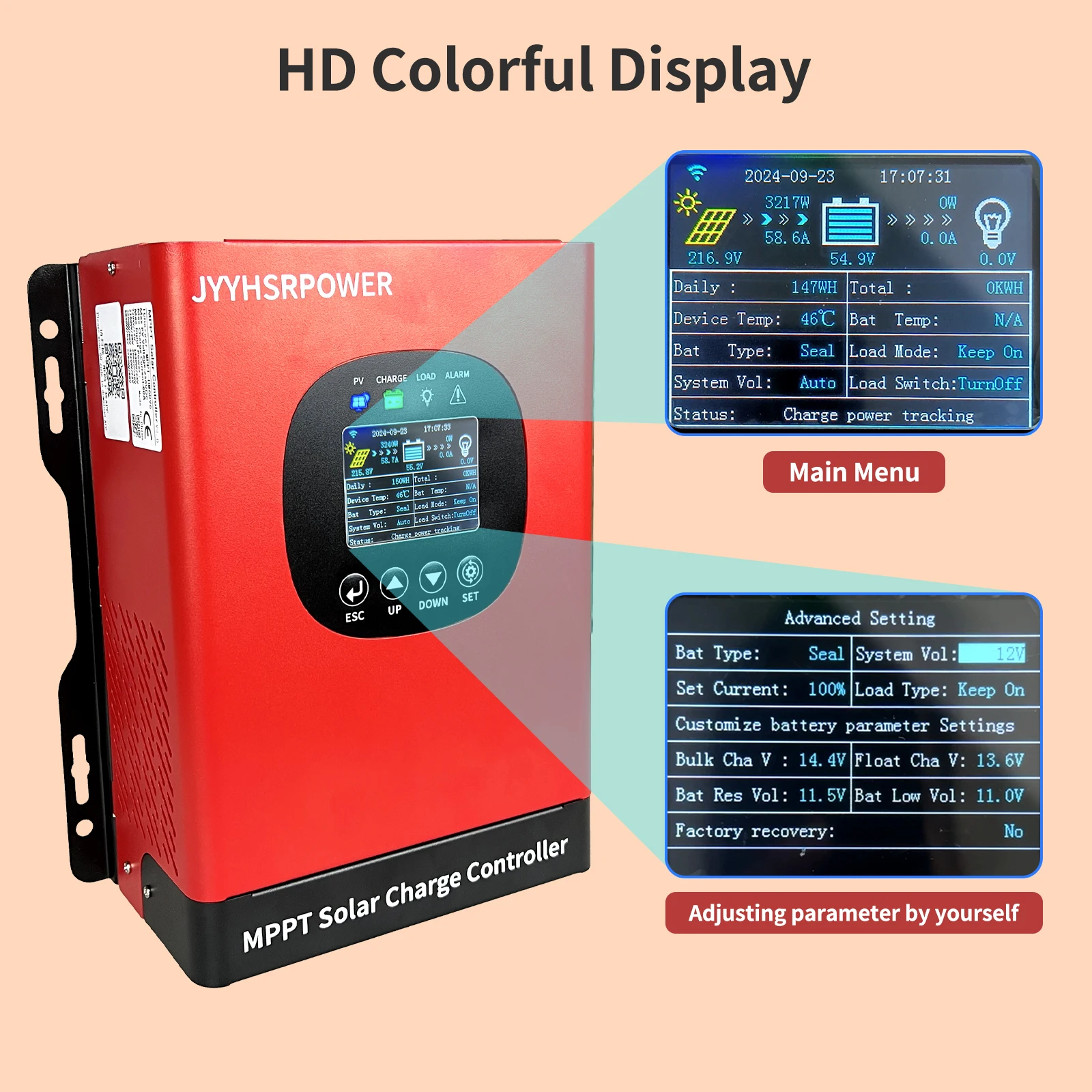

The built-in LCD display also provides local monitoring for users without app access.

Protection & Reliability

The controller is equipped with multiple safety protections, including:

• Over-current protection
• Over-voltage protection
• Short-circuit protection
• Over-temperature protection
• Reverse polarity protection

It also uses air cooling with a built-in fan to maintain stable performance under heavy load conditions.

Build & Installation

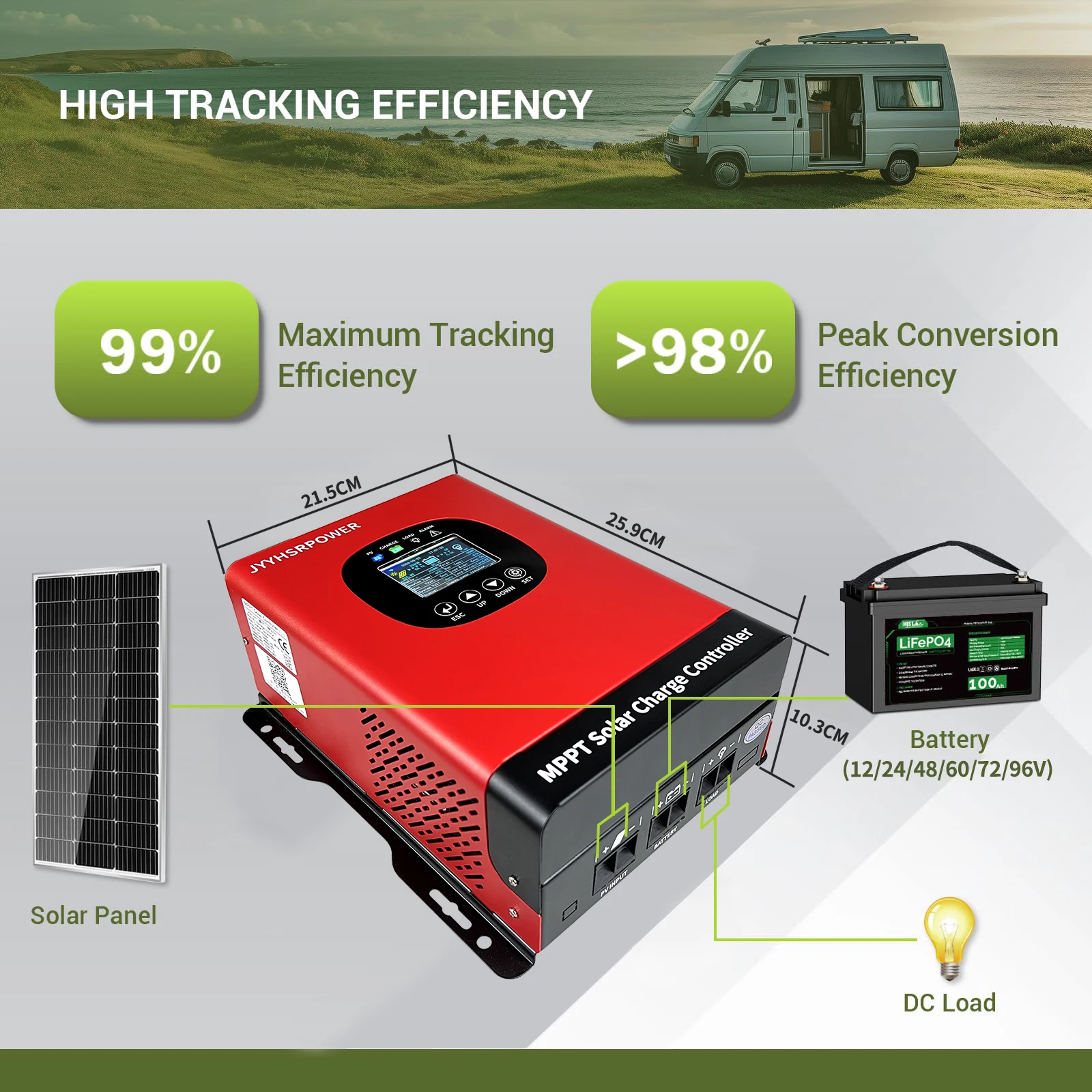

Designed with a solid industrial-grade build, the unit measures 262 × 218 × 102 mm (or larger depending on variant) and weighs around 2.8–5 kg. It is intended for wall-mounted installation in solar power systems such as cabins, RVs, telecom stations, and backup energy setups.

Ideal Use Cases

This MPPT controller is best suited for:

• Off-grid solar systems (homes, cabins, RVs)
• Solar backup power systems
• Industrial and telecom installations
• Water pumping and remote power stations
• High-capacity renewable energy setups

Limitations

• Fan cooling may produce noise in quiet environments
• Setup can be complex for beginners
• WiFi/app features may vary depending on model version
• Requires correct system matching (voltage and panel configuration critical)

Overall Verdict

The 80A 9600W MPPT Solar Charge Controller is a powerful and efficient solution for large-scale solar energy systems. Its high conversion efficiency, broad battery compatibility, and smart monitoring features make it a strong choice for users aiming to maximize solar performance.

It is best suited for advanced users and professional installations, rather than simple plug-and-play home solar kits.
