Jonsbo NV10 / N10 Mini ITX PC Case

The Jonsbo NV10 / N10 is a premium Mini-ITX desktop chassis designed for ultra-compact PC builds where space efficiency, clean aesthetics, and solid aluminum construction are priorities. With a compact volume of approximately 4.5L, this case is ideal for minimalist setups, portable desktops, and small form factor (SFF) gaming or workstation builds.

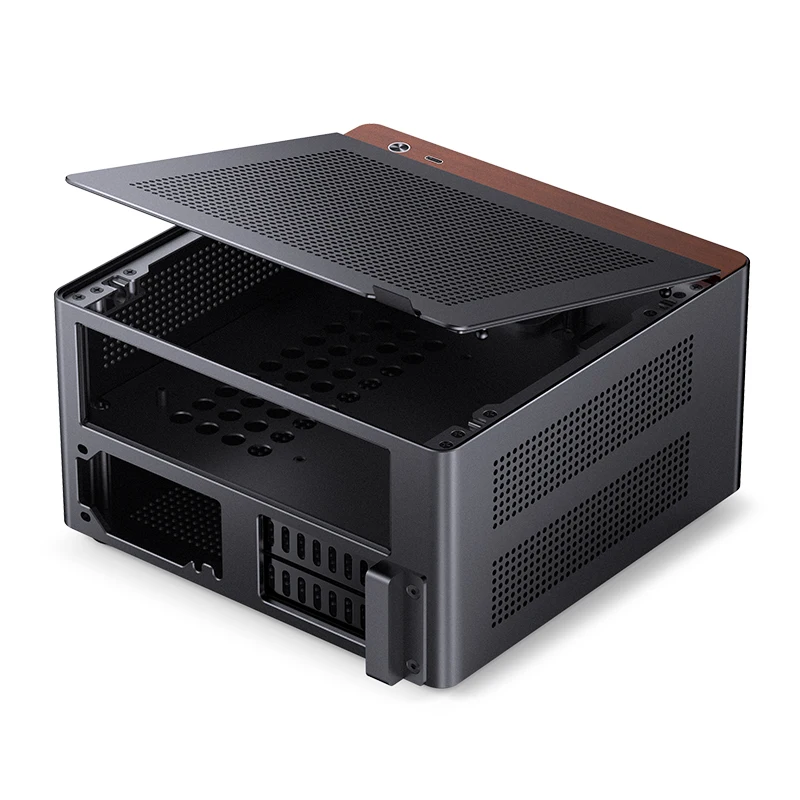

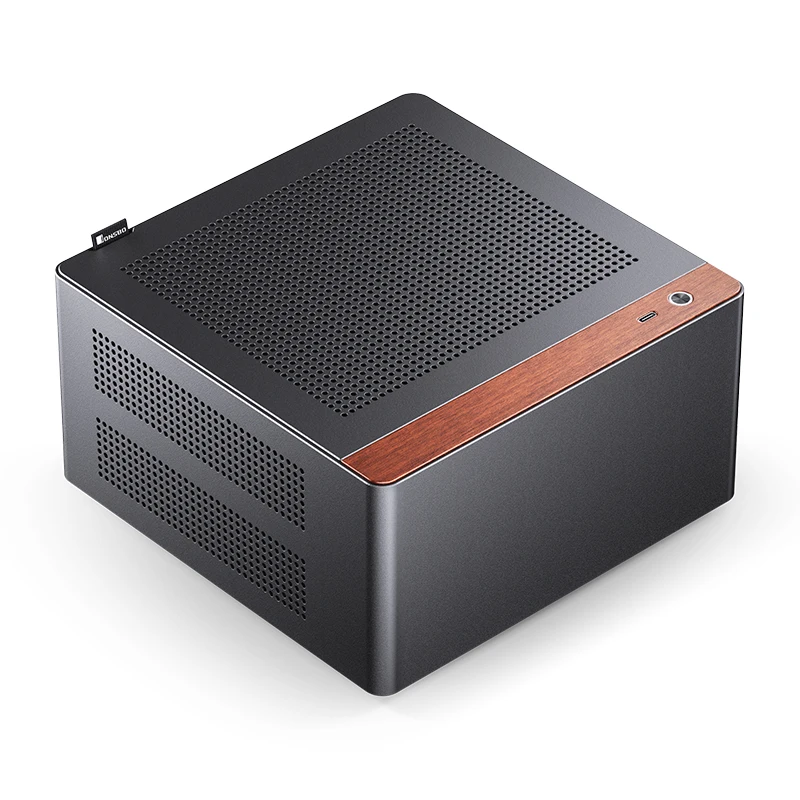

Constructed from 3.3mm aluminum alloy and steel panels, the chassis features a sandblasted finish combined with North American walnut accents, giving it a refined, modern, and premium appearance. Its design allows both vertical and horizontal placement, making it flexible for different desk environments.

Despite its small footprint, the NV10/N10 supports practical hardware configurations, including Mini-ITX motherboards, SFX/FLEX power supplies, and up to 190mm half-height GPUs (NV10 model). Storage support includes up to four 2.5-inch SSDs, making it suitable for compact high-speed storage builds.

The case also includes Type-C front I/O, PCIe 4.0 riser support, and pre-installed high-speed 40mm cooling fans (on selected versions) to help maintain airflow in a restricted space.

Key Features

• Ultra-compact Mini-ITX form factor (4.5L volume)
• Premium aluminum + steel + walnut design
• Supports SFX / 1U FLEX power supplies (≤150mm)
• GPU support up to 190mm (NV10 model, half-height)
• CPU cooler height up to 38mm
• Up to 4× 2.5” SSD storage slots

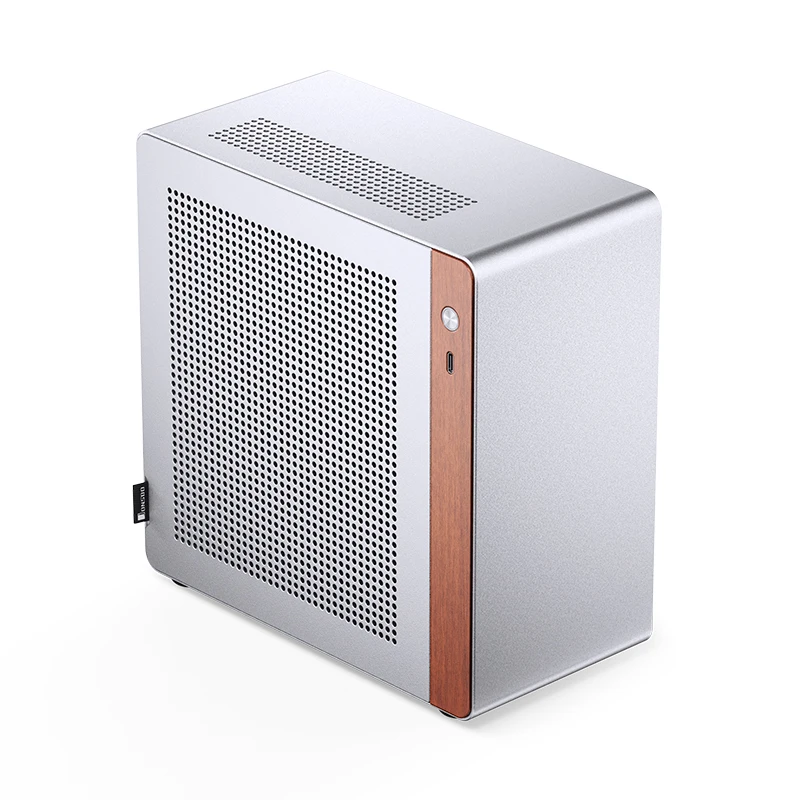

• Flexible vertical or horizontal placement
• Front USB Type-C port
• Optional high-speed 40mm cooling fans
• Clean, minimalist industrial design

Product Review (Real-World Perspective)

The Jonsbo NV10 / N10 is a high-end small form factor case focused on design and compact efficiency rather than expandability.

Strengths

The standout feature is the build quality and design aesthetics. The aluminum shell feels solid and premium, while the walnut trim gives it a distinctive, furniture-like appearance rather than a typical PC case look.

Its extremely compact 4.5L size makes it excellent for users who want a clean desk setup or portable computing system. It fits well in tight spaces and is ideal for minimalist workstations or living-room PCs.

The NV10 version also adds GPU support up to 190mm, which is impressive for such a small enclosure, allowing light gaming or compact workstation builds.

Limitations

This case is clearly designed for space-saving rather than performance-heavy systems. The 38mm CPU cooler height limit and reliance on low-profile GPUs restrict high-performance cooling and upgrade options.

Cable management and building inside the case can be challenging due to the tight layout. It is not suitable for beginners or users building high-wattage gaming PCs.

Cooling is functional but limited, relying on small 40mm fans and compact airflow channels, which may not be sufficient for high-heat components.

Overall Verdict

The Jonsbo NV10 / N10 Mini ITX case is an excellent choice for users who prioritize premium design, ultra-compact size, and minimalist desktop builds. It is best suited for office PCs, HTPC setups, lightweight gaming systems, or portable workstation builds.

However, it is not designed for high-performance gaming rigs or heavily upgraded systems. Its strength lies in style, compact engineering, and efficient use of space, rather than raw performance expansion.
